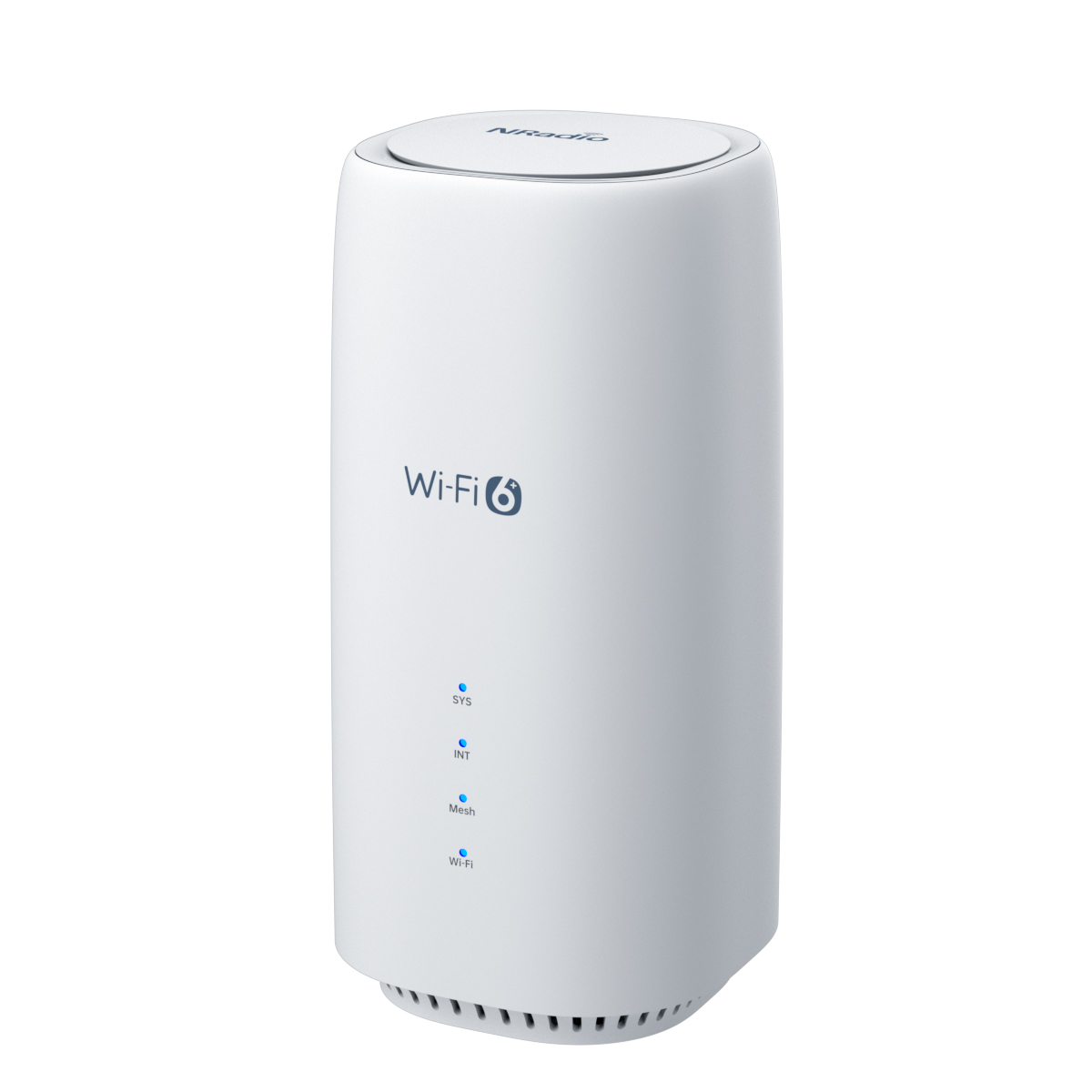

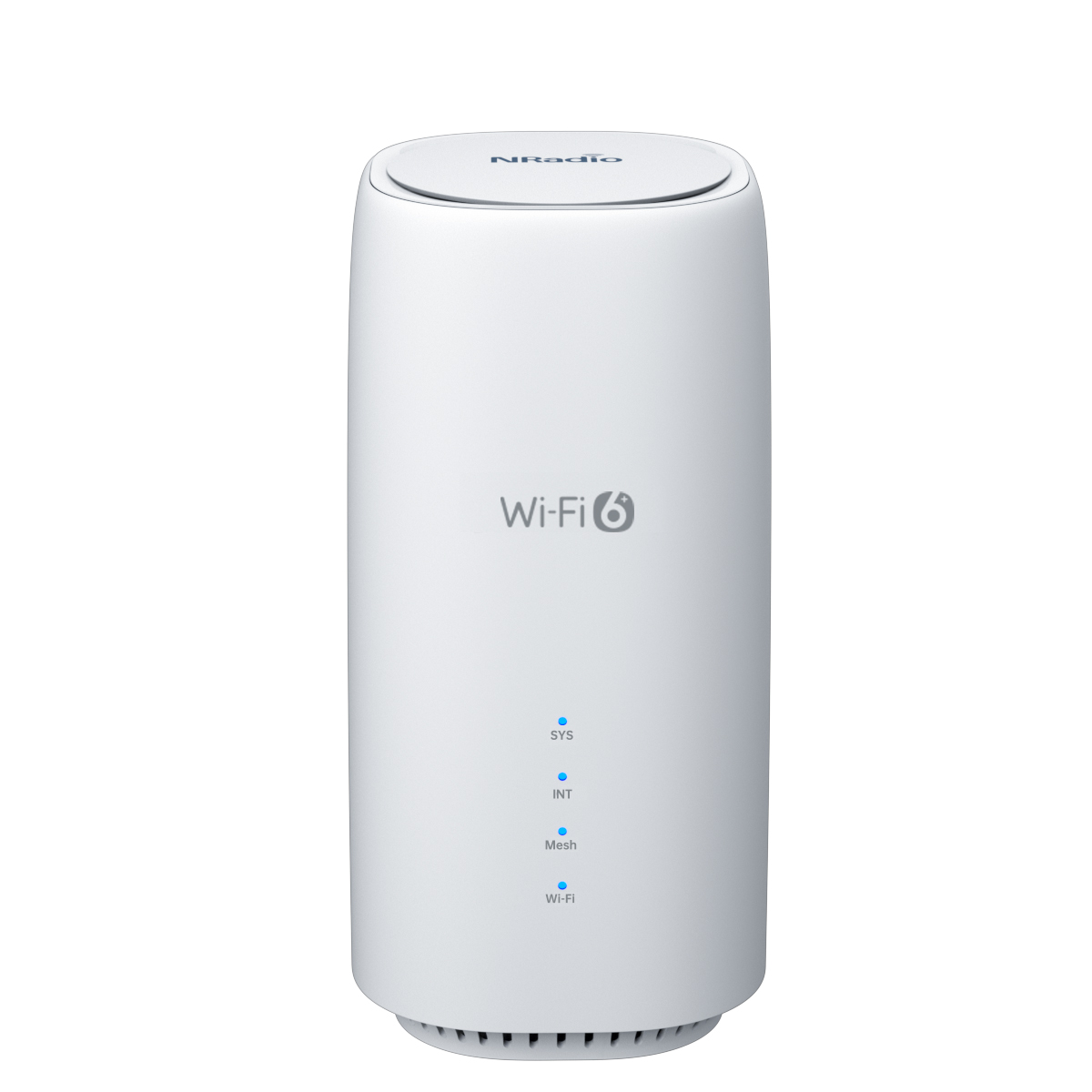

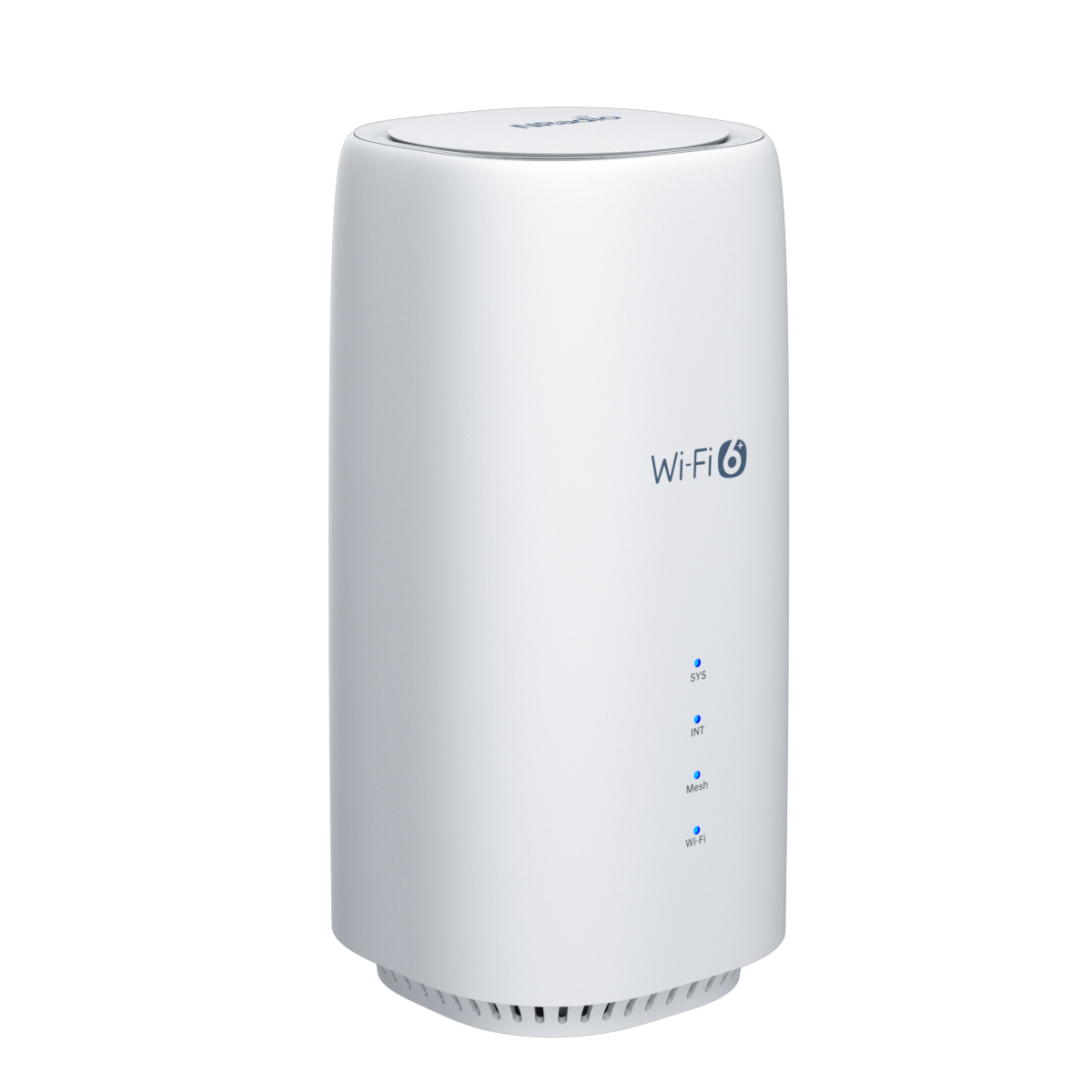

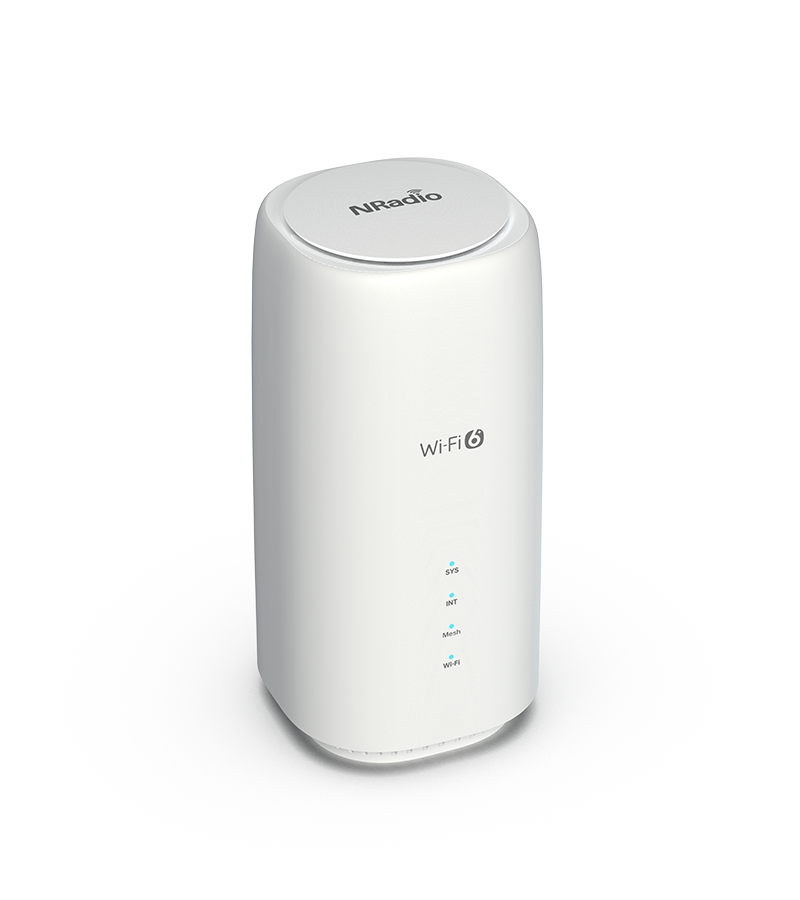

N8
Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
|
HARDWARE FEATURES |
|
|

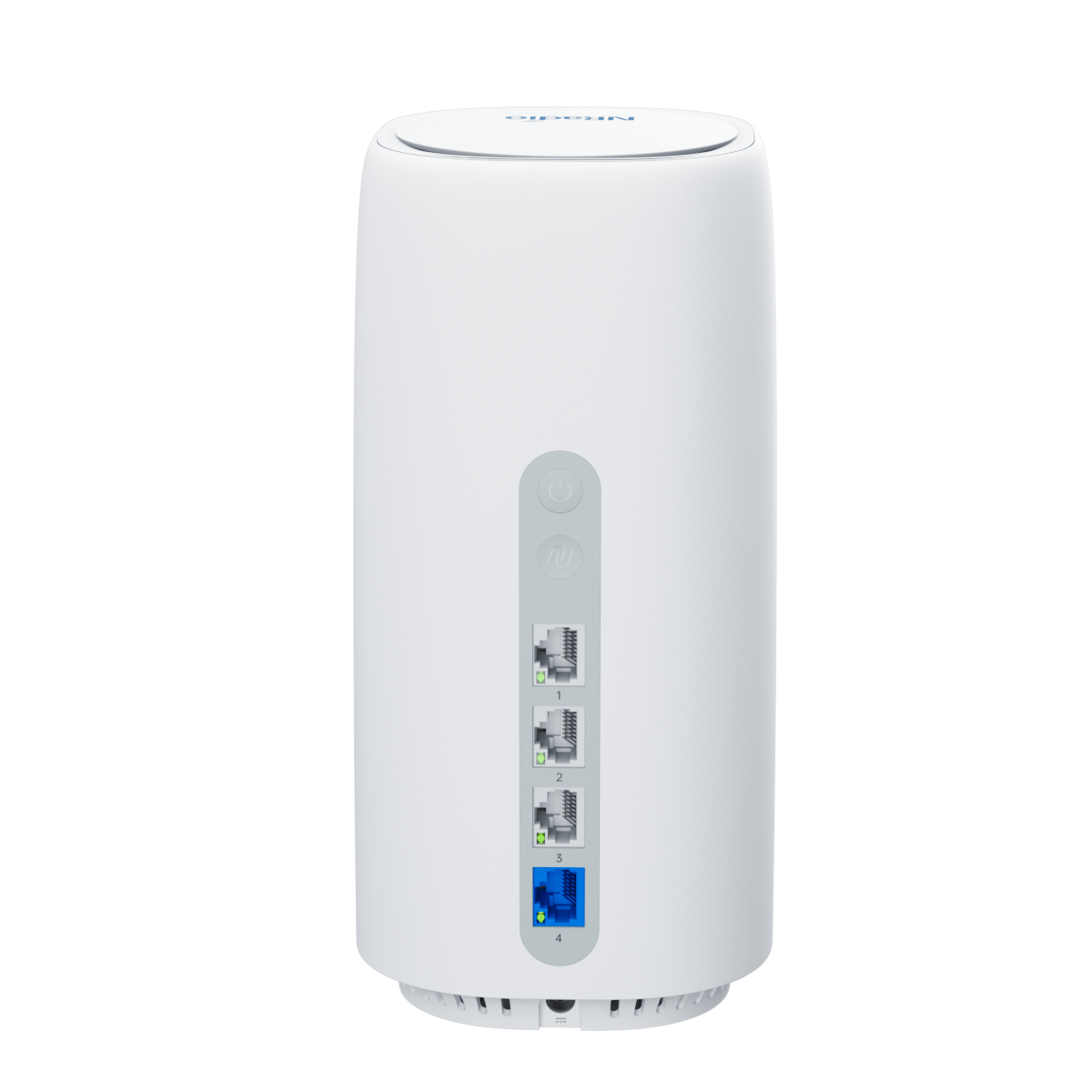

Interface |
4 × 10/100/1000 Mbps WAN/LAN Port |
|
Button |
Reset Button, Power On/Off Button,Mesh Button |
|
External Power Supply |
Power Adapter: Input Power 100-240v~50/60 Hz 0.6A |
|
Dimensions ( W x D x H ) |
100×100×200MM(3.94×3.94×7.88in) |
|
Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
|
Antenna |
6×built-in high gain antennas |
|
WIRELESS FEATURES |
|
|
Wireless Standards |
IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ac/ax 2.4 GHz |
|
Frequency |
2.4 GHz and 5 GHz |
|
Signal Rate |
573 Mbps at 2.4 GHz, 1201Mbps at 5 GHz |
|
Wi-Fi Max.Associated Clients |
256 |
|
Wireless Security |
WPA/WPA2, WPA-PSK |
|
Modulation technology |
OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16QAM@24Mbps, 64QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps MIMO-OFDM: MCS 0-31 MIMO-OFDM (11ac): MCS 0-9 MIMO-OFDMA (11ax): MCS 0~9 |
|
SOFTWARE FEATURES |
|
|
Channel adjustment |
Support |
|
Power adjustment |
Support |
|
Access restrictions |
Support |
|
SSID Hidden |
Support |
|
Speed limitation |
Support |
|
Black and white list |
Support |
|
User isolation |
Support |
|
Bandwidth limit |
Support |
|
DHCP |
Support |
|
VPN |
Support |
|
NRadio Cloud |
Support NRadio Connection and realize remote management. |
Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
